• Day/night rearview mirror
• Power vertical rear window with defogger and privacy glass
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Backup camera with projected path
• Drive Mode Select (DMS) switch and dial
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V auxiliary power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect®
• Front and rear assist grips

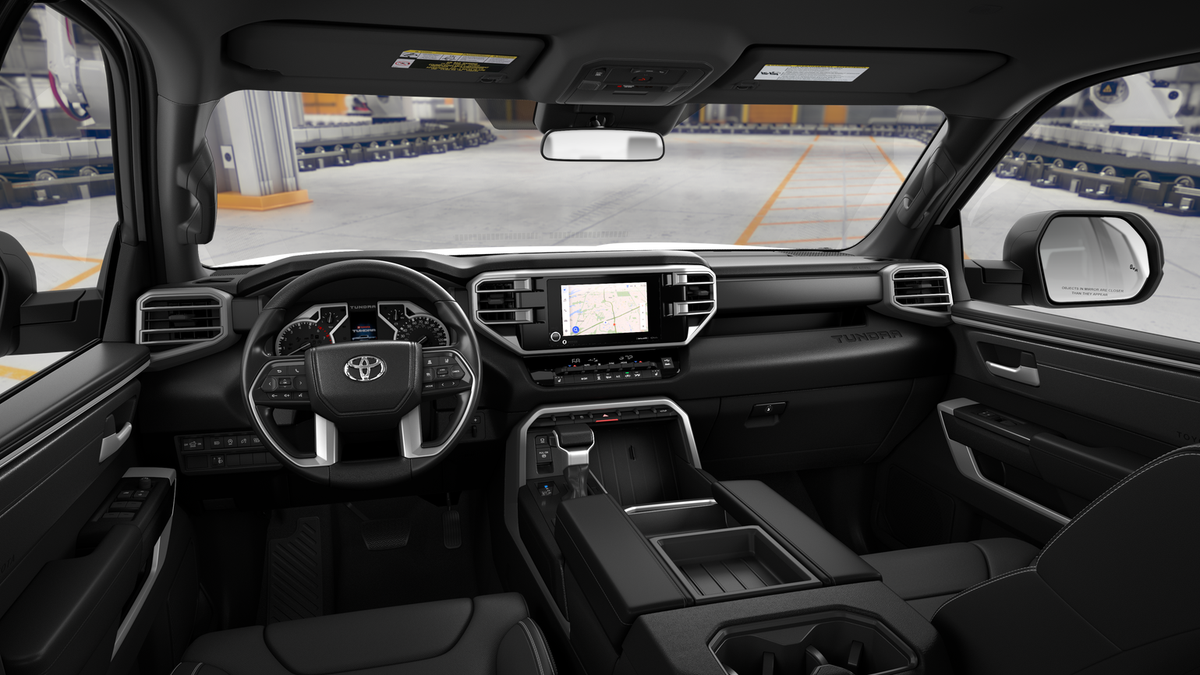

• Combination meter with analog gauges and 4.2-in. color digital gauge cluster with fuel economy, Driver Assist, vehicle/trip information, and warning messages

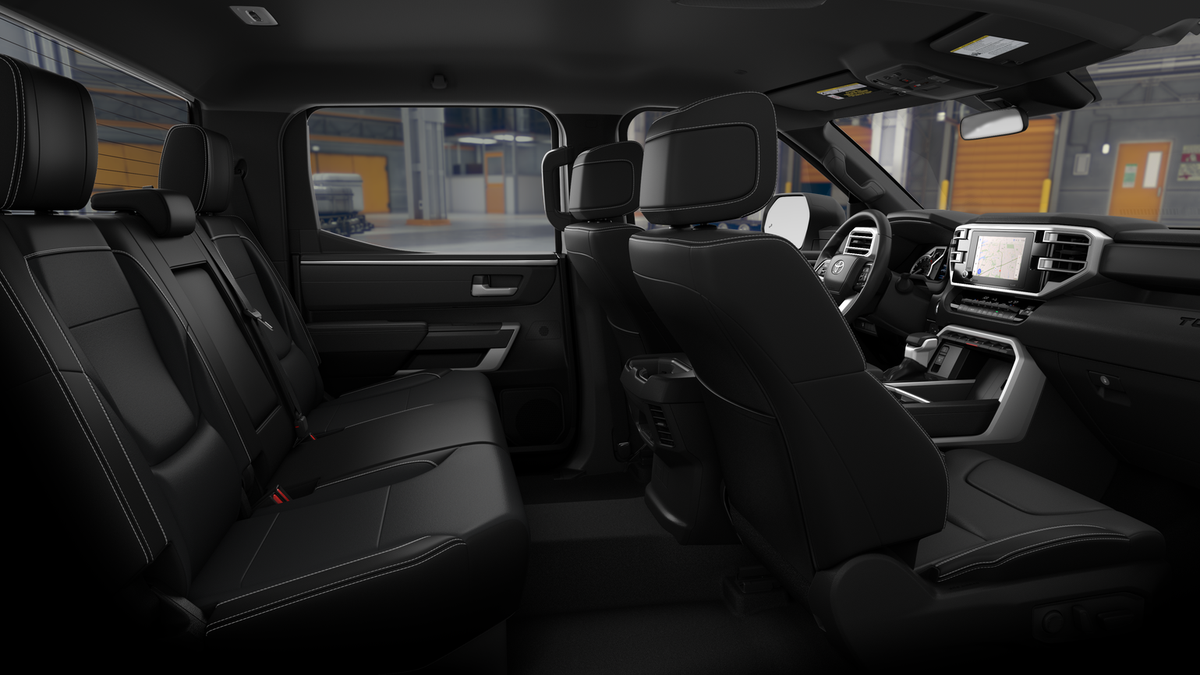

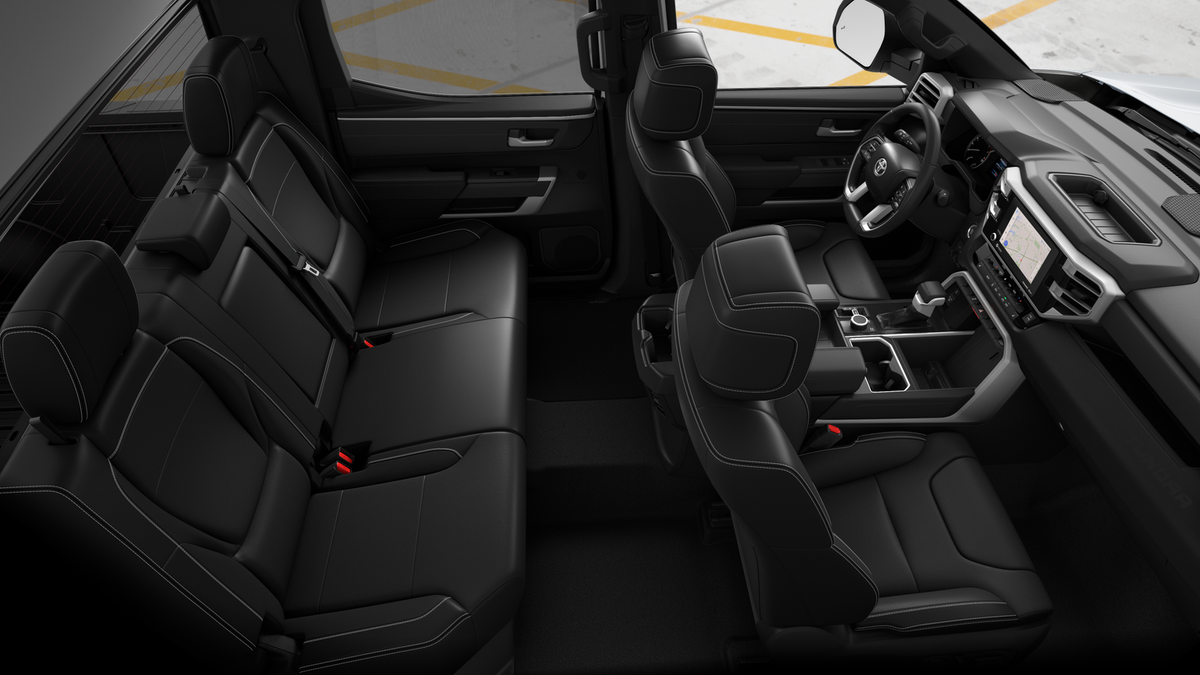

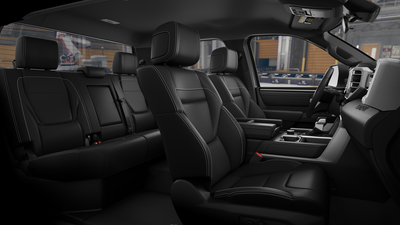

• Fabric-trimmed seats; 8-way power-adjustable driver's seat with power-adjustable lumbar support; 4-way manual adjustable passenger seats
• 60/40 split, folding rear seat
• Rear under-seat storage compartment with removable and adjustable partitions
• Single-zone automatic climate control with air filtration with S-Flow
• Polyurethane manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
• 9-speaker audio system

• Ignition System: Conventional 12V starter
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
• Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
• Towing: Trailer-Sway Control (TSC)
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD)
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active aero front spoiler
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system
• Brakes: Electric Parking Brake (EPB)

• Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Eight total airbags, including driver and passenger side, knee and curtain airbags
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC)
• Tire Pressure Monitor System (TPMS)
• Driver and front passenger headrests

Advanced Technology Package

• Advanced Technology Package

  • Blind Spot Monitor (BSM)


  • Front and Rear Parking Assist with Automatic Braking


  • Panoramic View Monitor (PVM)


  • Trailer Backup Guide with Straight Path Assist (SPA)


  • Digital rearview mirror

Premium Audio Package

• Premium Audio Package

  • 14-in. audio multimedia


  • 400W/120V rear-seat AC power supply


  • 400W/120V bed-mounted AC power supply


  • LED bed lights

50 State Emissions

• 50 State Emissions

PVM + BSM Outer Mirrors

• Heated power outside mirrors (color-keyed) with Blind Spot Monitor (BSM)
• Panoramic View Monitor (PVM)
• and LED turn signals

SR5 Premium Package

• SR5 Premium Package

  • Leather-trimmed seats with contrast stitching


  • 8-way power-adjustable heated front seats with power lumbar


  • Dual zone automatic climate control


  • Color-keyed outer door handles

Heated Leather-Wrapped Steering Wheel

• Heated leather-wrapped steering wheel

All-Weather Floor Liners

• Engineered to precisely fit your Tundra and made from durable
• weather-resistant material.
  • Liners feature channels to better hold moisture

Black Front Bumper Insert

• Tundra front bumper insert is engineered to fit into the bumper to give your Tundra a custom look.

  • Designed to fit permanently into existing bumper


  • Easy to install


  • Available in black or chrome

TRD 3" Suspension Lift Kit

• The new Tundra TRD Lift Kit offers a 3" lift in the front and a 2" lift in the back
• providing 2.6” of additional ground clearance overall.

  • Increased suspension stroke to support lift and aid in off-road performance & on-road stability


  • Toyota Safety Sense 2.5 compliant


  • Bilstein-Tuned Front & Rear Shock Absorbers


  • Forged Steel Upper Control Arms by Roush


  • Eye-Catching TRD Red Front Coil Springs


  • Selection of Lift Kit removes Fog Lights

Illuminated Front Badge: Dark Chrome

• Add a touch of style to your Tundra with the Illuminated Front Badge. Whether navigating city streets or tackling rugged trails
• this emblem will make a bold Toyota statement wherever your adventures take you.
  • Tested against harsh UV exposure to resist fading
• ensuring long-lasting brilliance
  • Provides a polished finish to elevate your vehicle's front grille
  • Easy installation makes upgrading your badge simple

TRD 20" Wheel Package

• Enhance your Toyota’s performance with this premium TRD wheel package.
  Includes:
  • TRD 20" Forged Matte Black Wheel
  • Black Lug Nuts
  • Black Wheel Locks
•
  • Falken Tires (265/60R20)

Door Edge Guards: Stainless Steel

• Help prevent door edge dings and chipped paint with this protective finishing touch.
  • Thermoplastic-coated stainless steel is precisely matched to the exterior finish

Spray-On Bedliner

• Get the spray-on bedliner that’s as tough and durable as your Tundra. Protect your bed from damage with this permanently bonded fixture.
  • New
• Toyota-exclusive softer material to keep items from sliding in the bed
  • Toyota quality standards assure uniform thickness and a consistent texture
  • Textured surface is designed to prevent cargo from sliding
  • No lost cargo space
• minimal added weight
  • Features a Tundra logo
  • Proprietary application method helps create a straight and crisp edge
  • Fully warranted; repairs completed quickly and easily at a Toyota dealership

• 50 STATE EMISSIONS

  HEATED LEATHER STEERING WHEEL

  ALL WEATHER FLOOR LINERS (TMS)

  BLACK FRONT BUMPER LETTERS (TMS)

  TRD 3" LIFT KIT (TMS)

  ILLUMINATED FRONT EMBLEM (TMS)

  STAINLESS STEEL DOOR EDGE GUARDS (TMS)

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Weight Information
• Base Curb Weight (lbs): 5390
• Gross Vehicle Weight Rating Cap (lbs): 7210
• Gross Combined Wt Rating (lbs): 17250
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11160
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1116
• Maximum Trailering Capacity (lbs): 11160
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P265/70TR18
• Rear Tire Size: P265/70TR18
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 20 X 8
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 38.5
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary

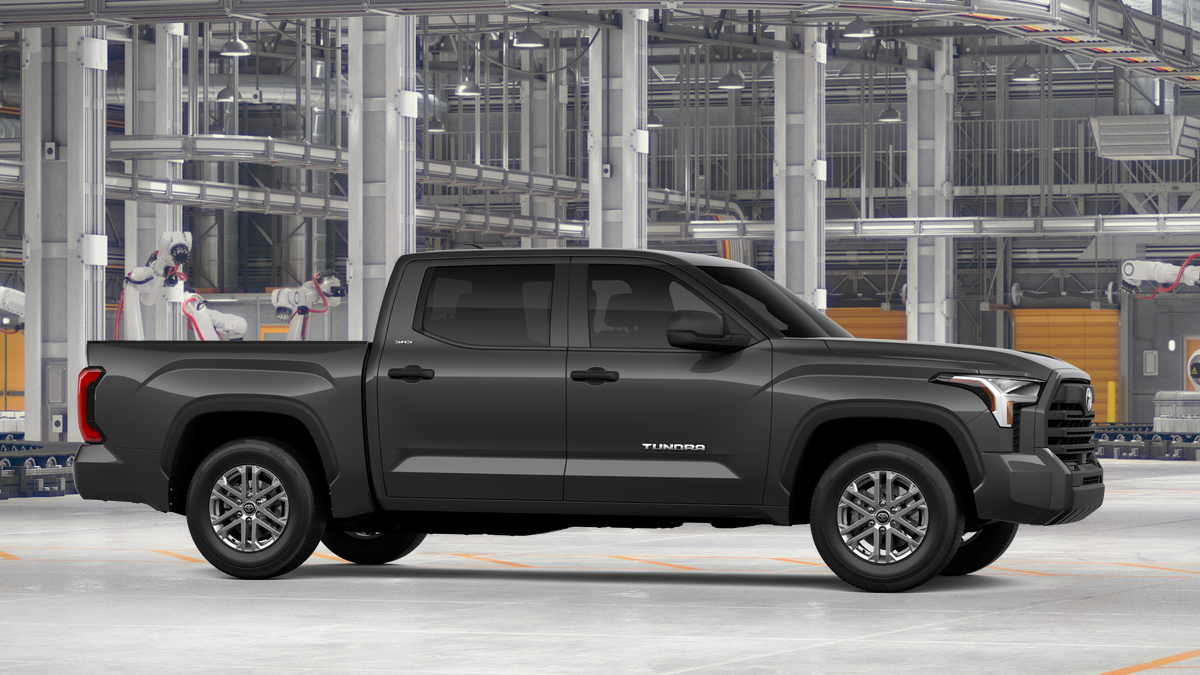

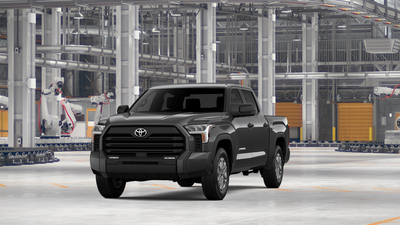

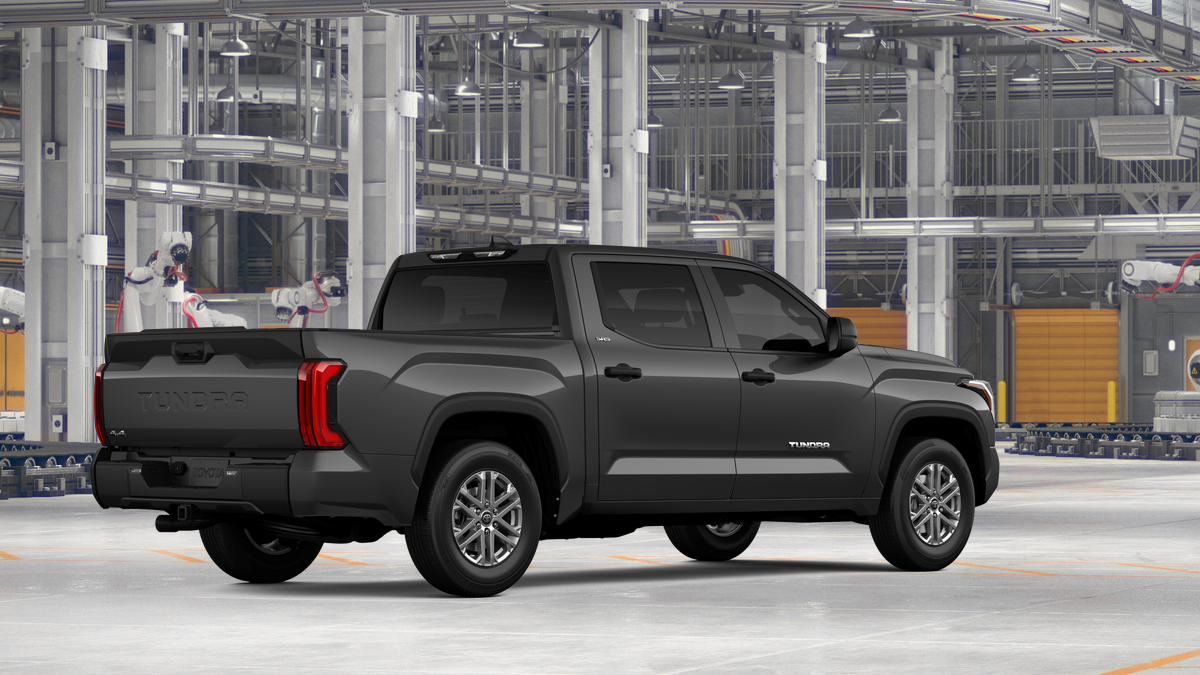

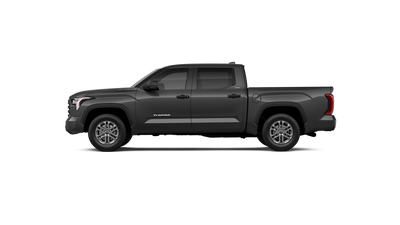

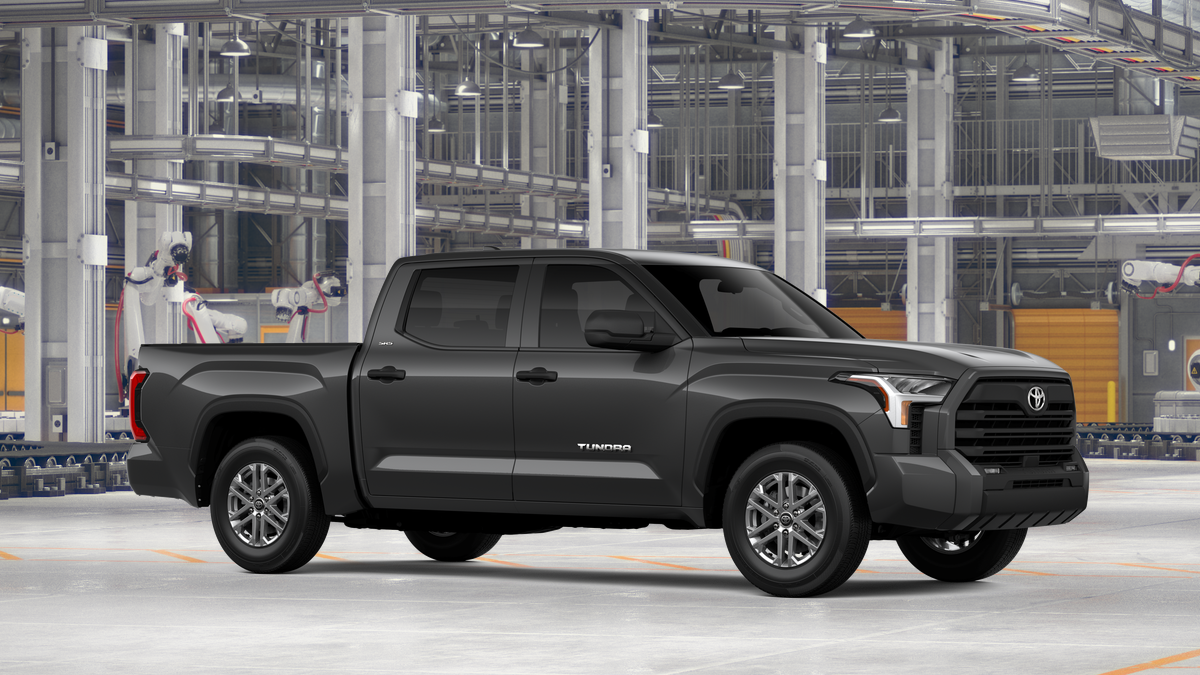

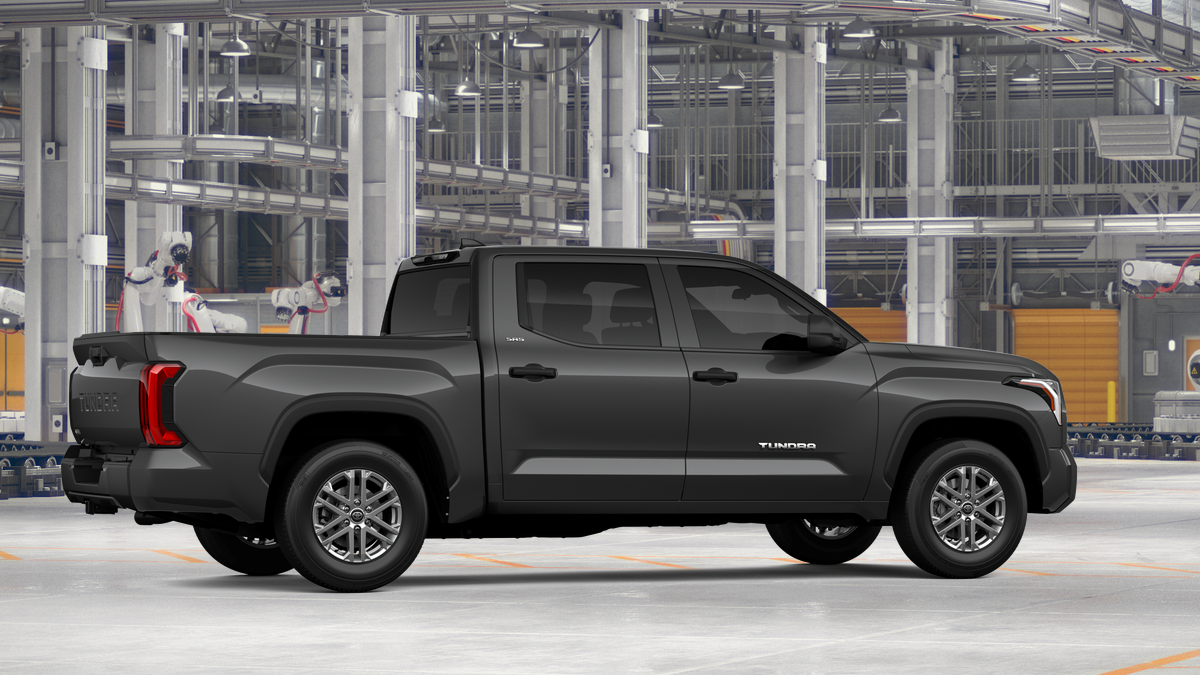

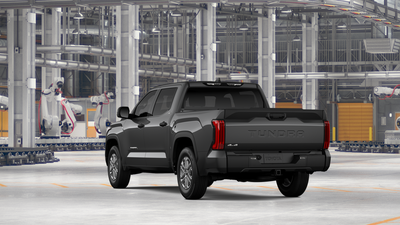

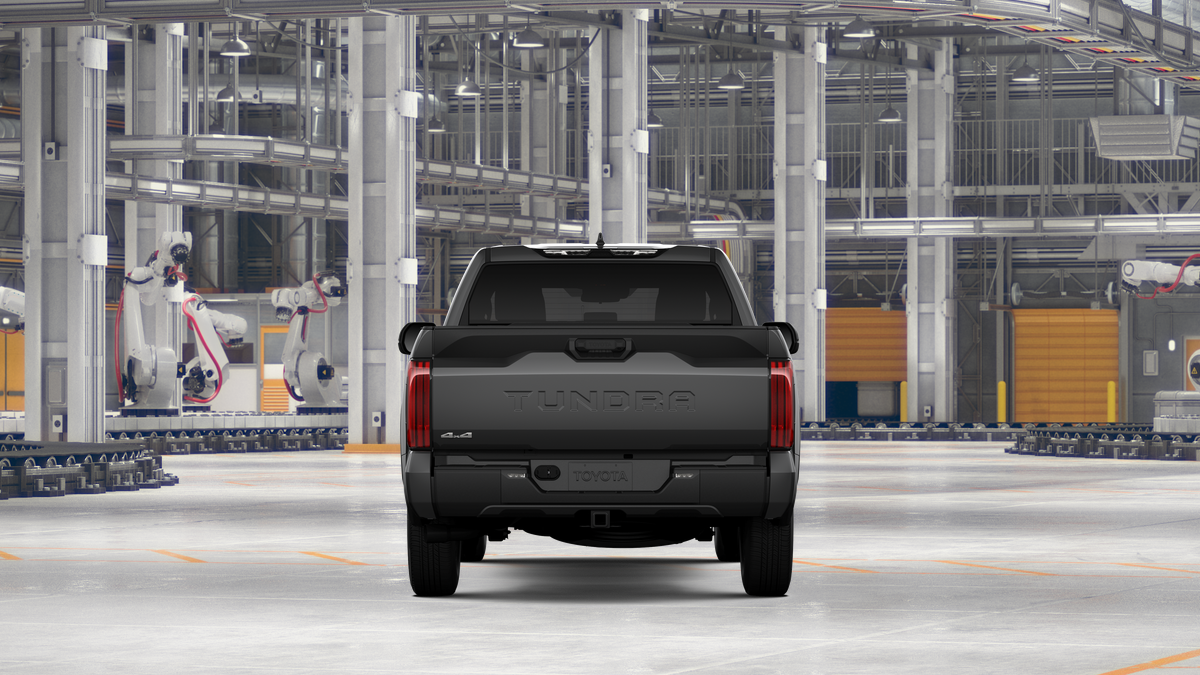

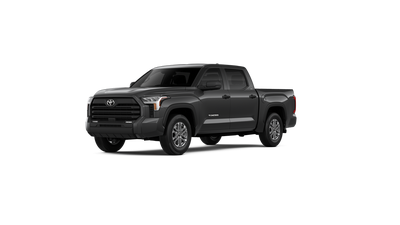

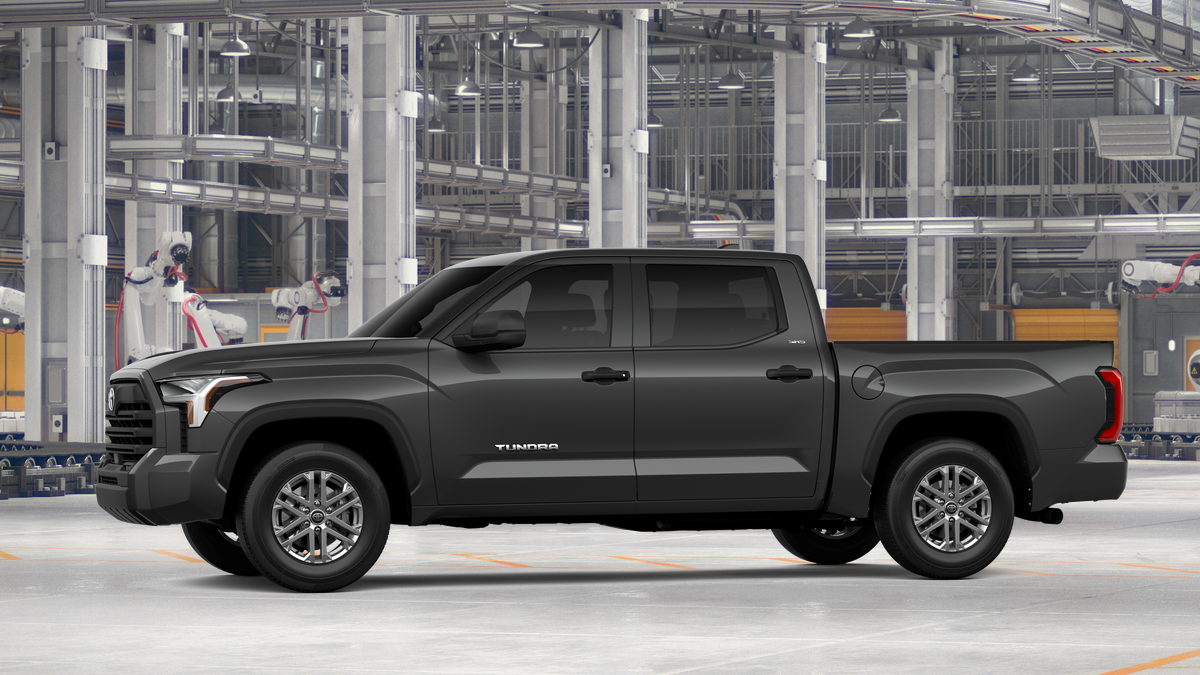

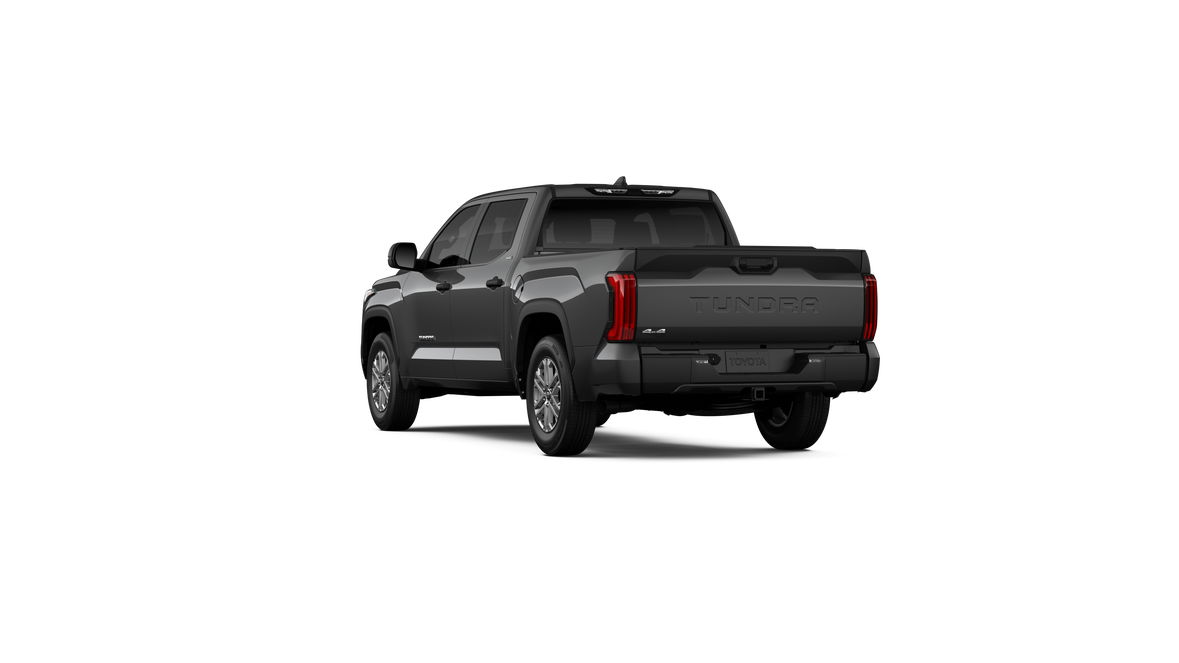

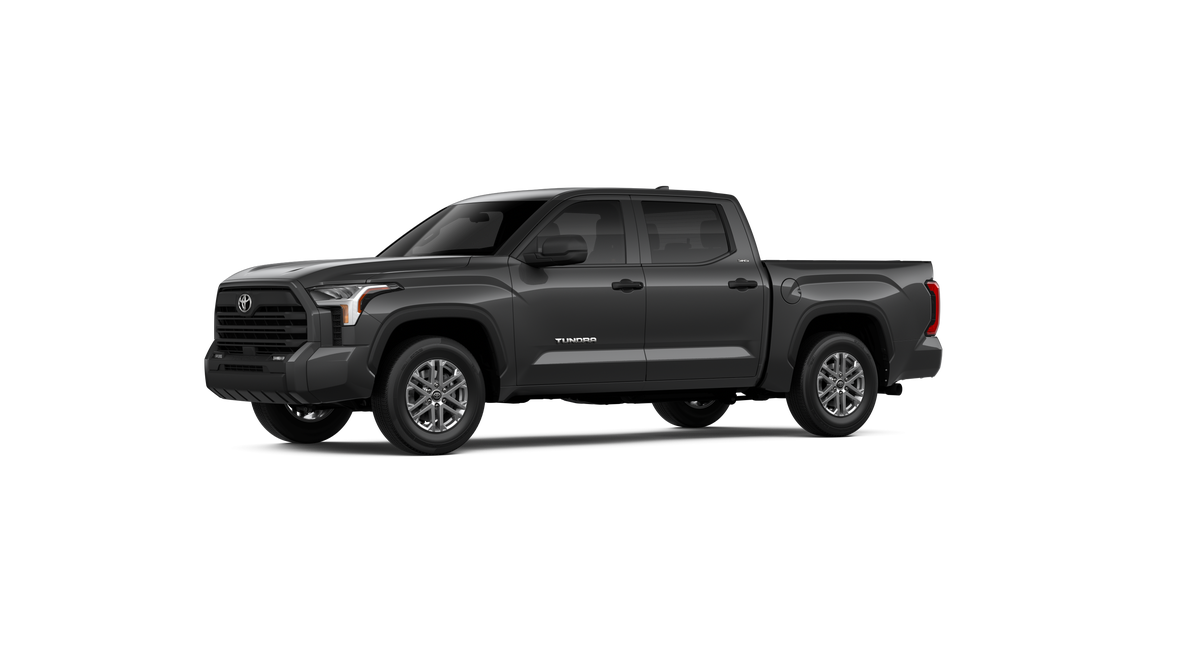

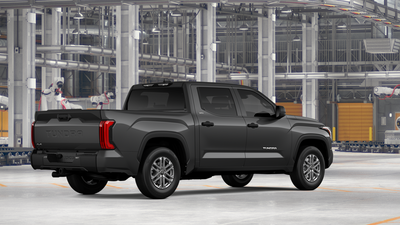

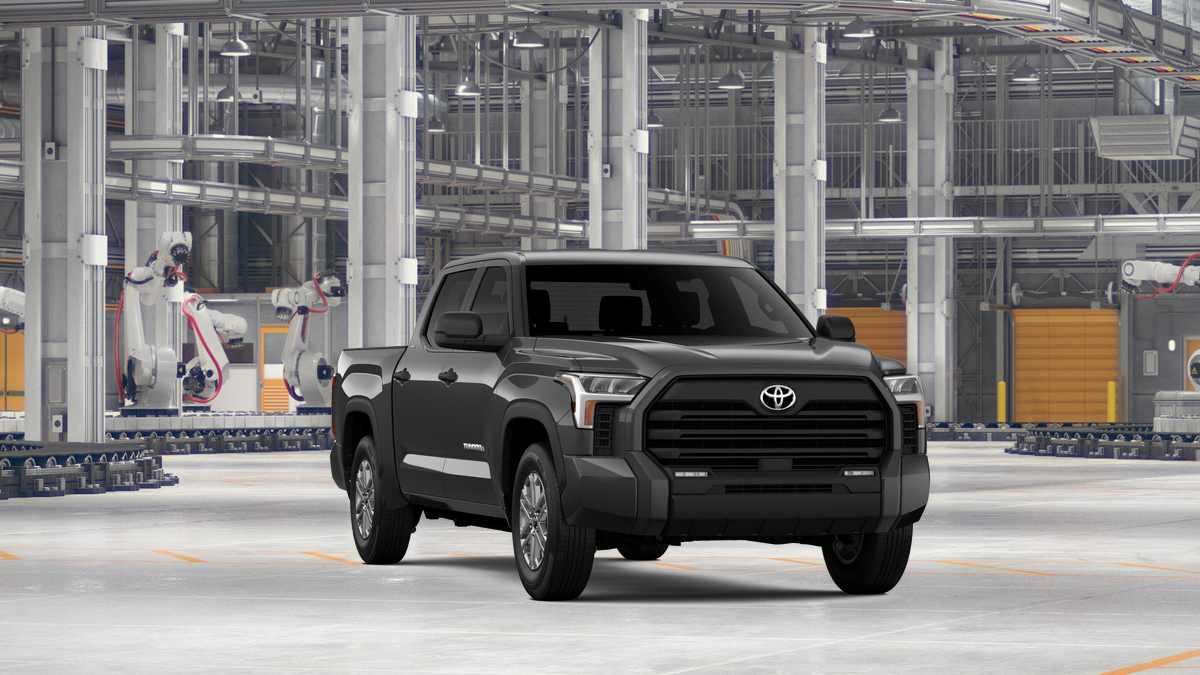

• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
• Emissions
• EPA Greenhouse Gas Score: 4.0
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.2
