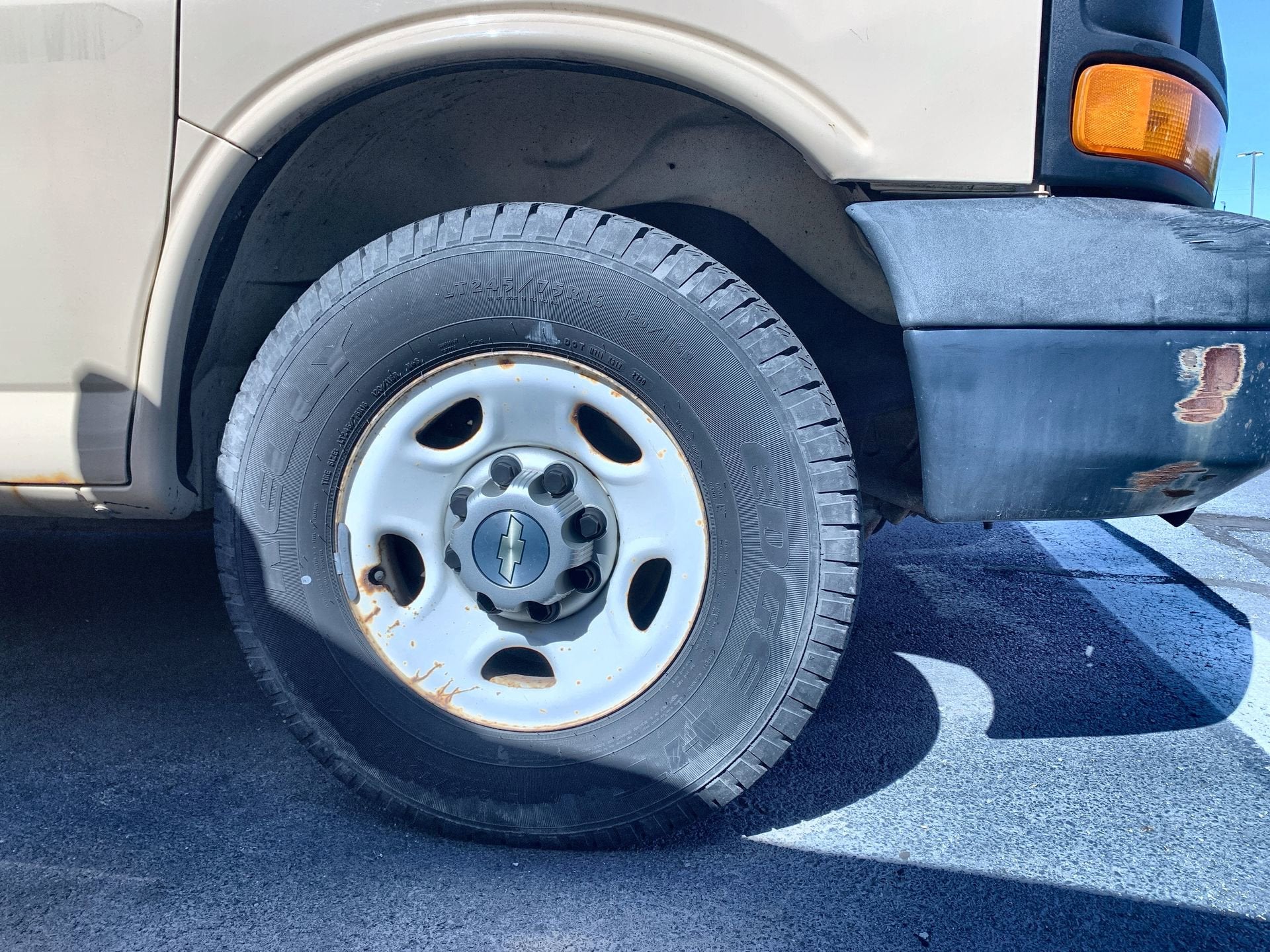

• Wheels, Gray-painted includes Gray center caps and steel spare (Standard on *G23*05 and *G33*05 models.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on the *G23*05 and *G33*05 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on the *G23*05 and *G33*05 models.)
• Tire, spare LT245/75R16E all-season, blackwall, located at rear underbody of vehicle (Standard on the *G23*05 and *G33*05 models.)
• Door, swing-out passenger-side, 60/40 split
• Bumpers, front and rear painted Black with step-pad (Not available with (ZR7) Chrome Appearance Package.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

• Seats, front bucket with vinyl trim and outboard head restraints (Requires (**W) interior trim.)

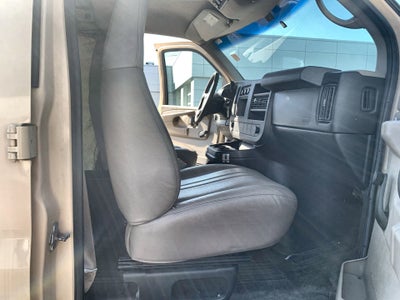

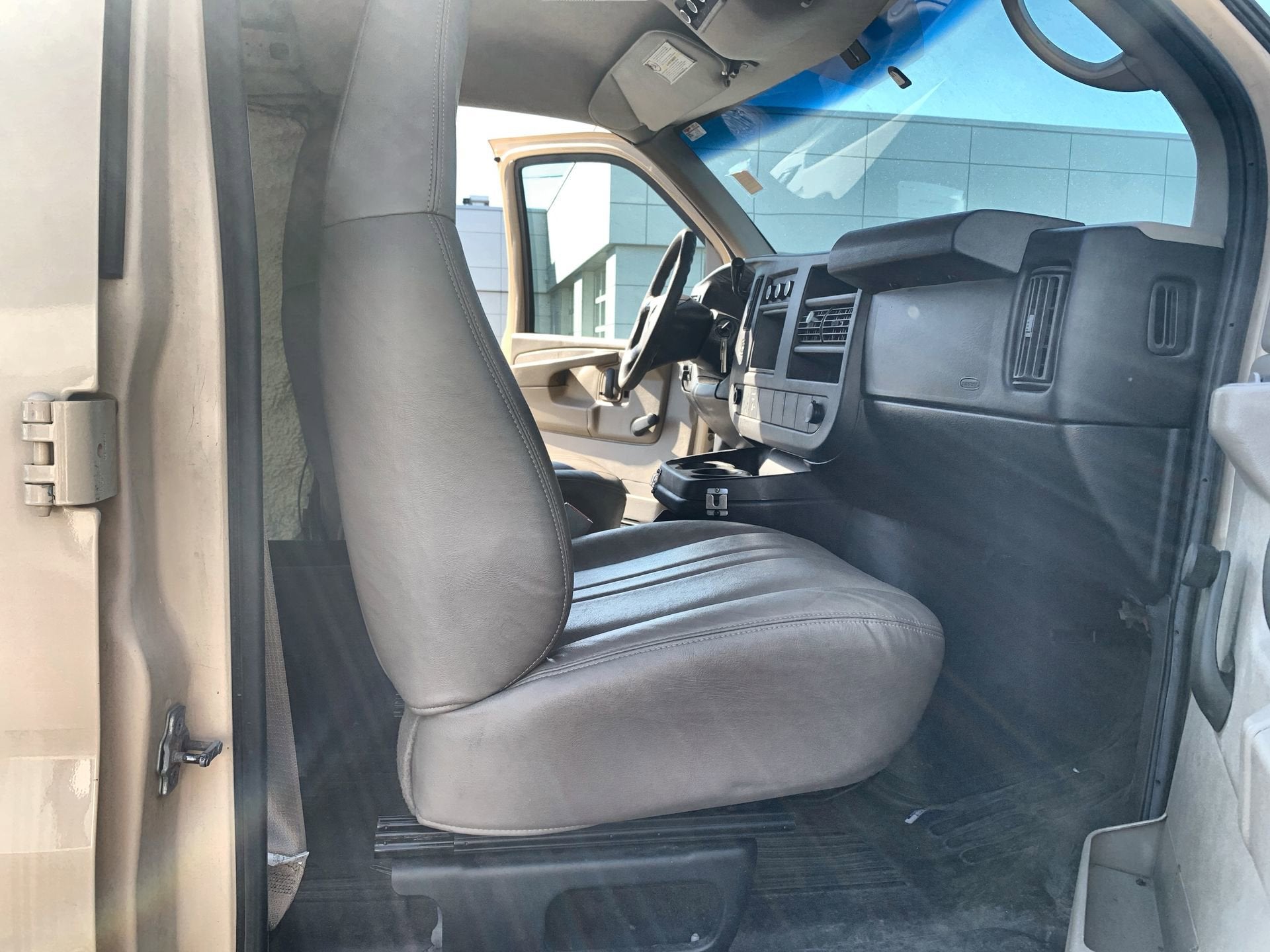

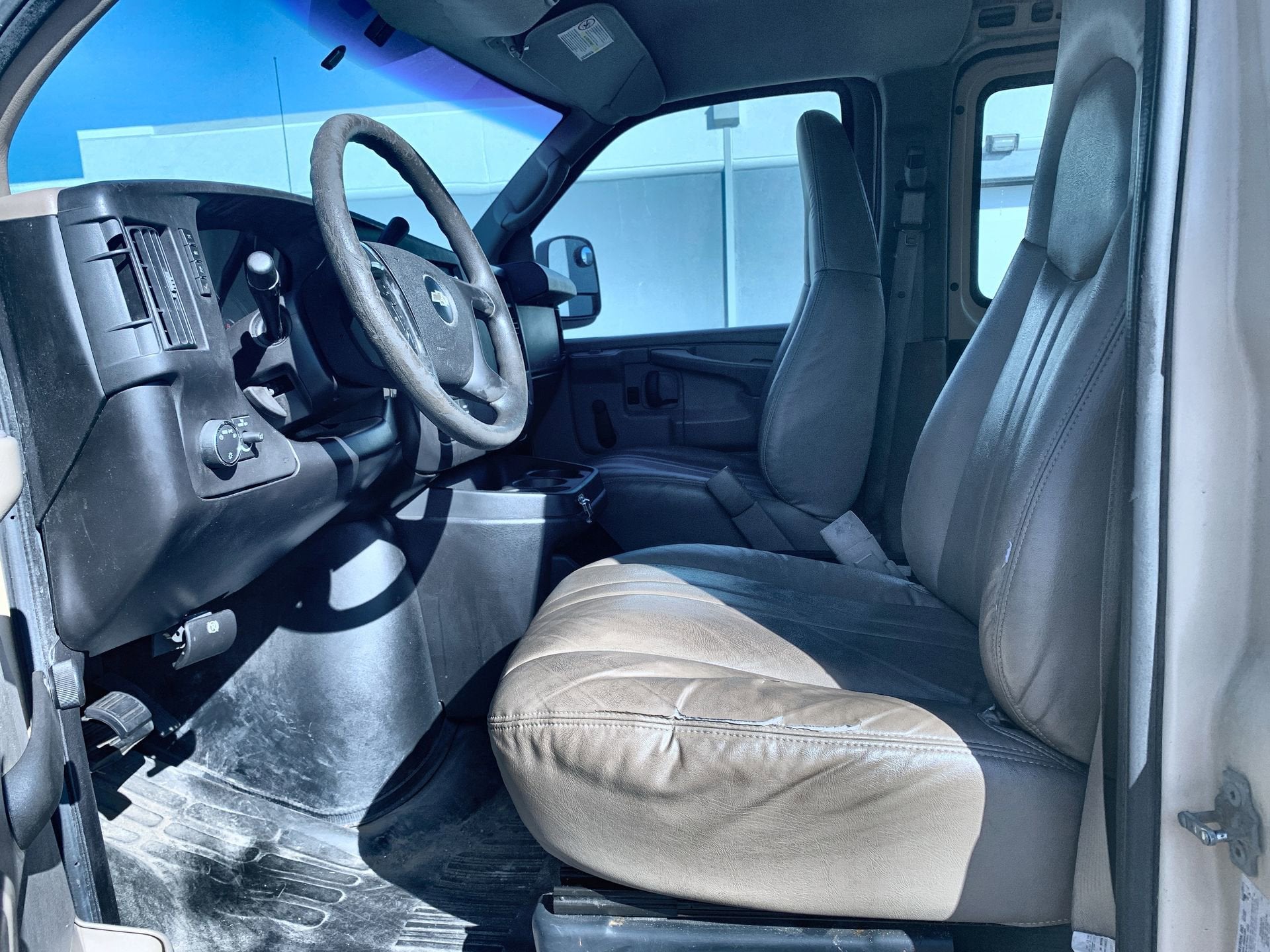

• Seating arrangement, driver and front passenger high-back buckets, adjustable with head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not standard with (YF2) Ambulance Package.)
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Mirror, inside rearview manual day/night (Included and only available with (A12) fixed rear door window glass or (A18) rear cargo door window swing-out glass.)
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, padded
• Assist handle, front passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches

• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver side only frontal air bag. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

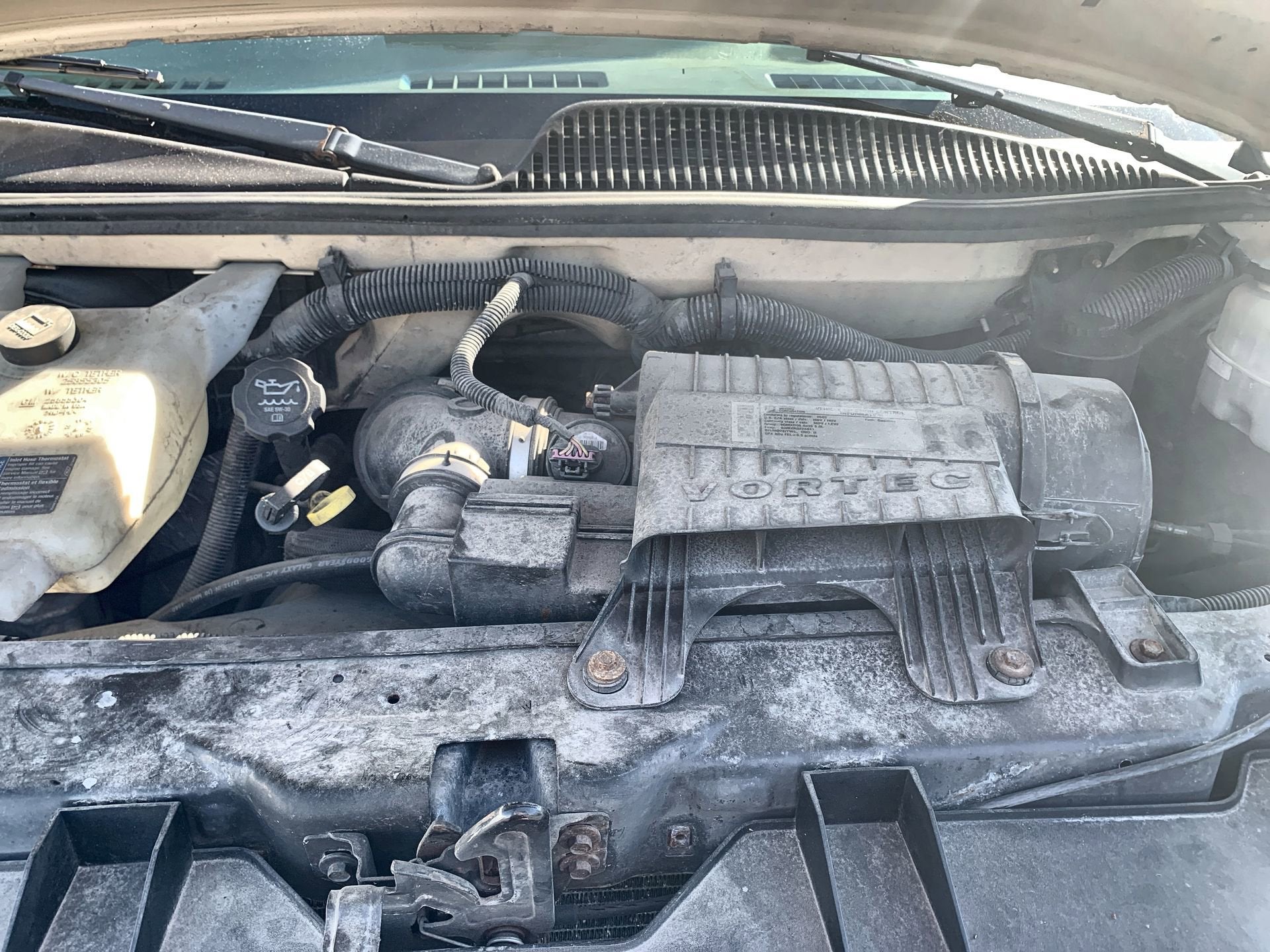

ENGINE, VORTEC 6.0L V8 SFI

• (319 hp [237.9 kW] @ 4600 rpm
• 367 lb-ft of torque [495.5 N-m] @ 4400 rpm)

• AUDIO SYSTEM RADIO PROVISIONS ONLY. Includes alarm warning chimes radio wiring harness radio antenna and 2 front door speakers (STD)
• SPECIAL PAINT SOLID ONE COLOR All normally body colored non-sheet metal parts will be flat Black
• REAR AXLE 3.73 RATIO
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS ADJUSTABLE with head restraints and vinyl or cloth trim (STD)
• NEUTRAL CUSTOM VINYL SEAT TRIM
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth.
• CONVENIENCE PACKAGE TILT-WHEEL AND CRUISE CONTROL
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints (STD)
• ENGINE VORTEC 6.0L V8 SFI (319 hp [237.9 kW] @ 4600 rpm 367 lb-ft of torque [495.5 N-m] @ 4400 rpm)
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• ALTERNATOR 145 AMPS
• PAINTS SOLID DOESKIN TAN All extraneous body components formerly color-keyed to body color will be flat Black with SEO paint
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• TRIM PANELS HINGED REAR SIDE DOORS AND HINGED REAR DOORS (STD)
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• DOOR LOCKS POWER WITH LOCK-OUT PROTECTION
• AIR CONDITIONING REAR (Includes (C36) rear heater and (KG3) 145-amp alternator.
• SPECIAL PAINT
• GLASS FIXED REAR DOORS AND SIDE CARGO DOORS
• GLASS FIXED REAR DOORS WINDOWS
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL LOCATED AT REAR UNDERBODY OF VEHICLE (STD)

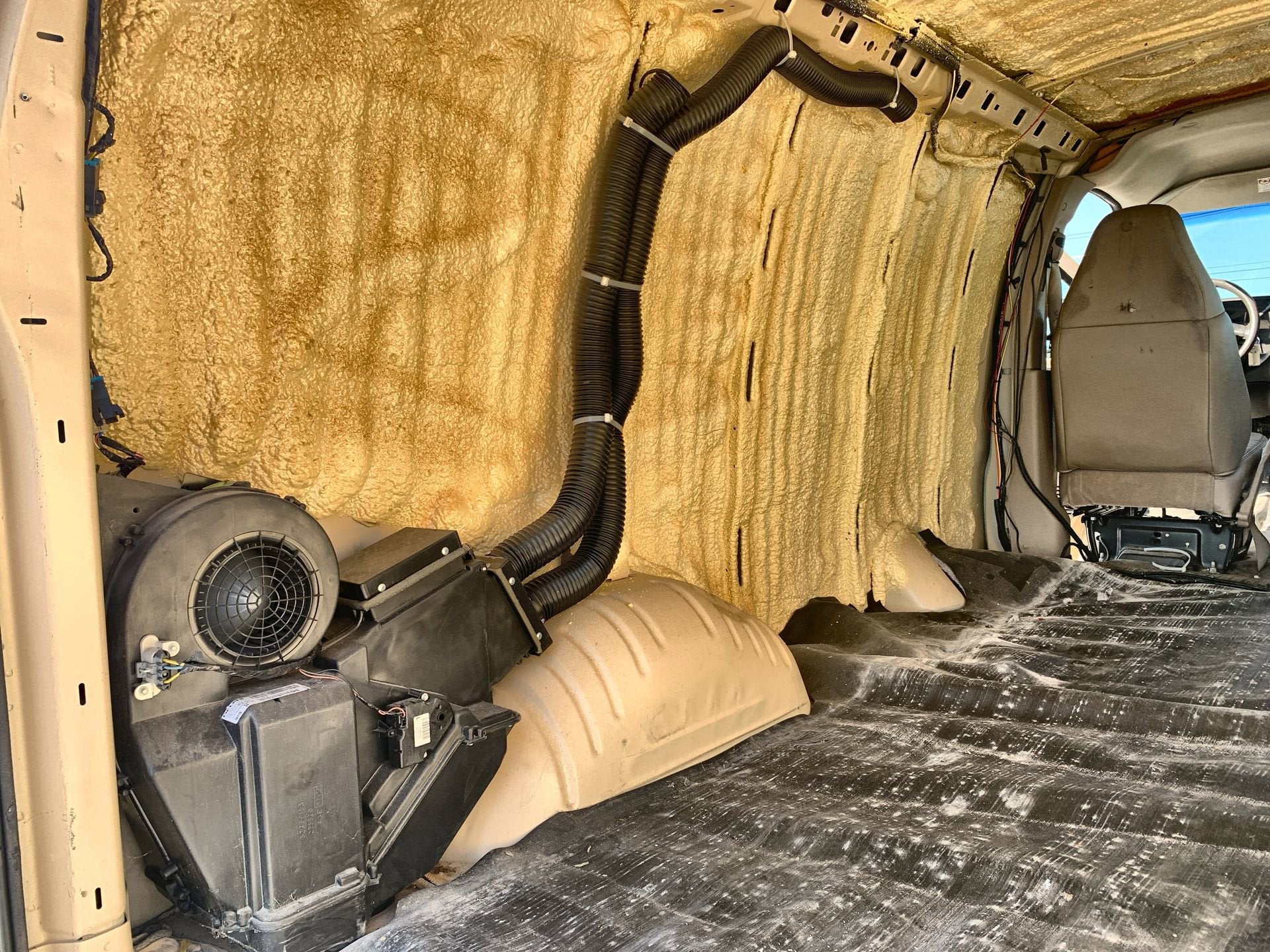

• HEATER REAR AUXILIARY
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer

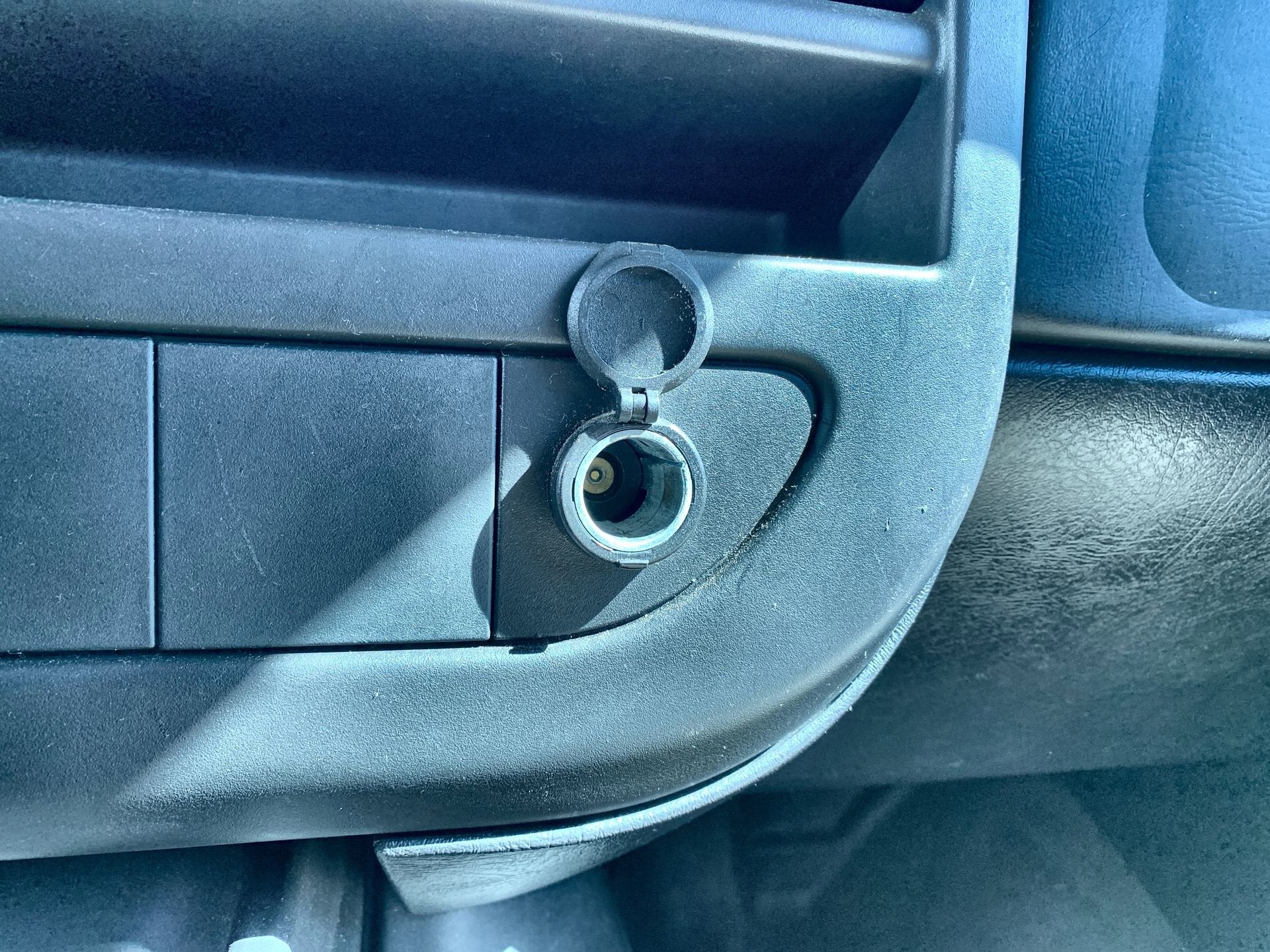

• Power Outlet
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2919
• Curb Weight - Rear (lbs): 2193
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

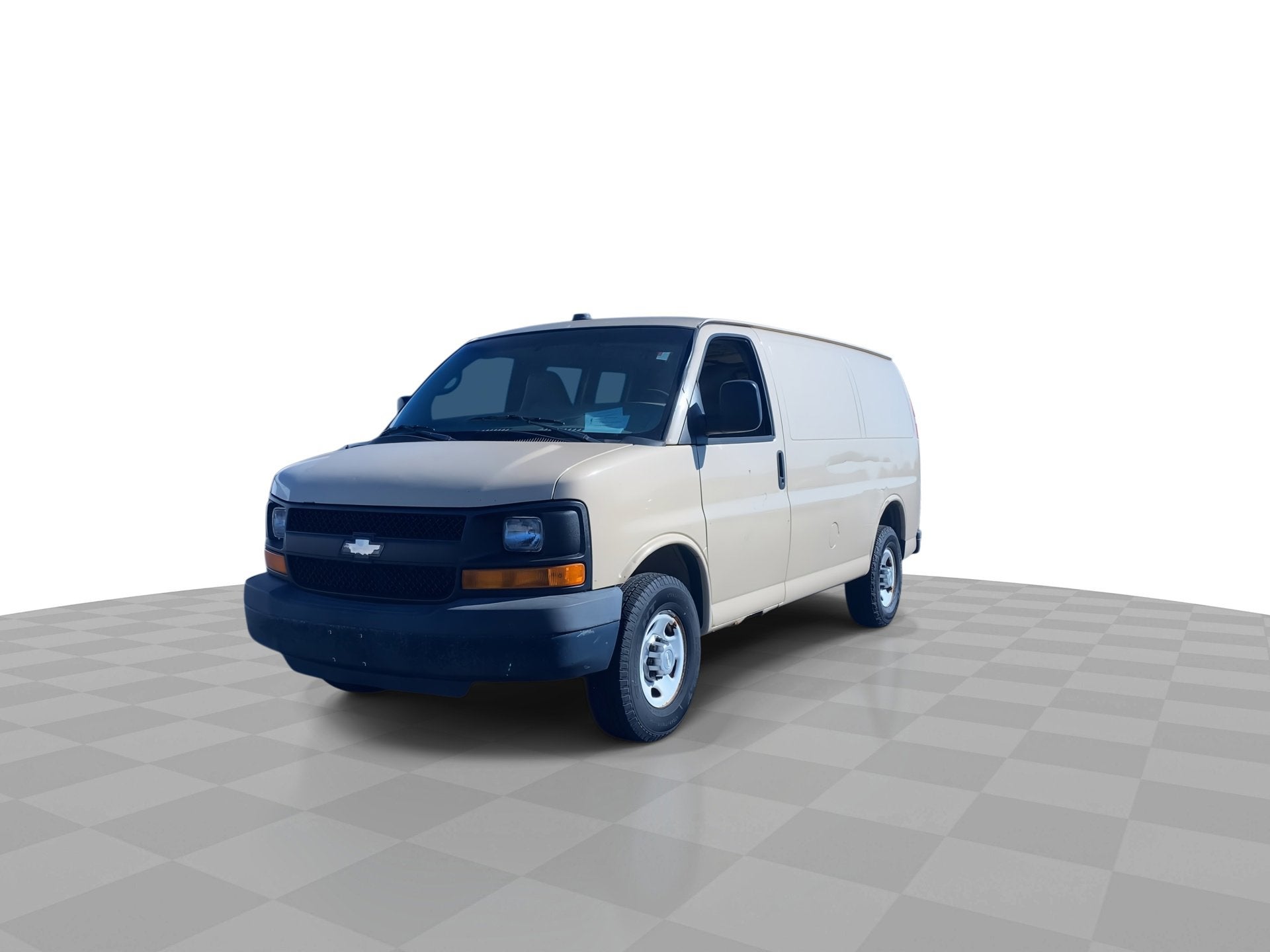

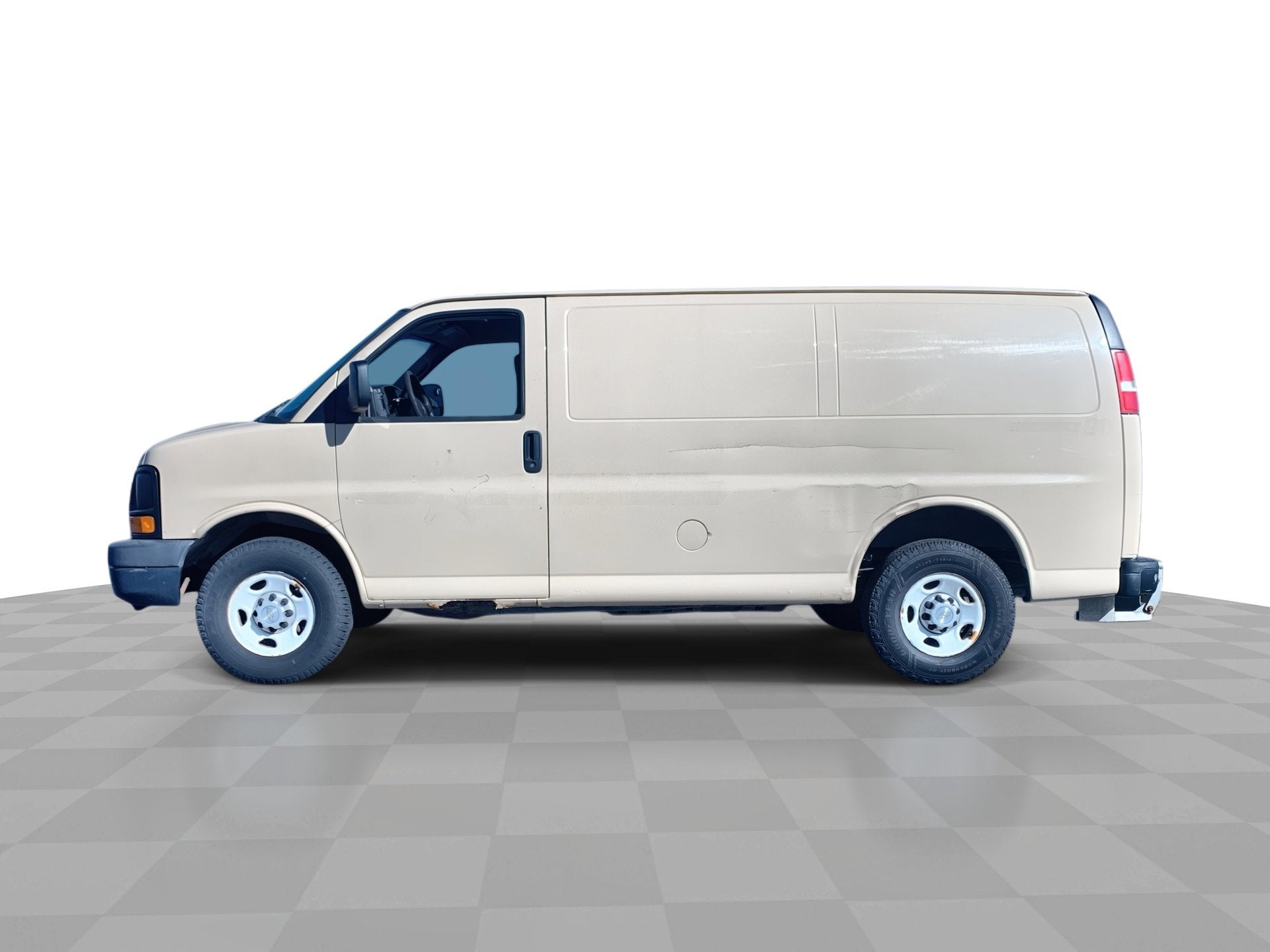

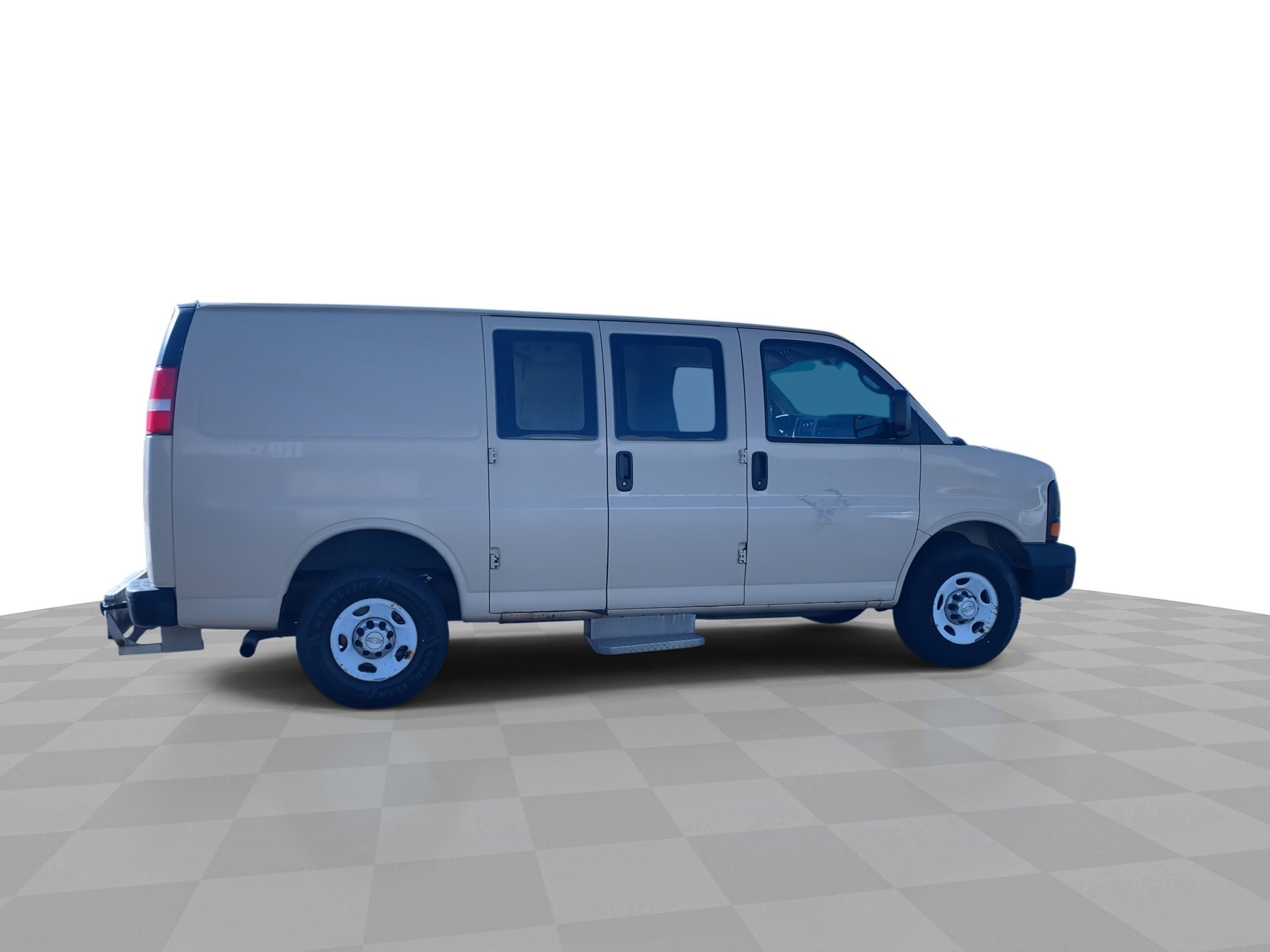

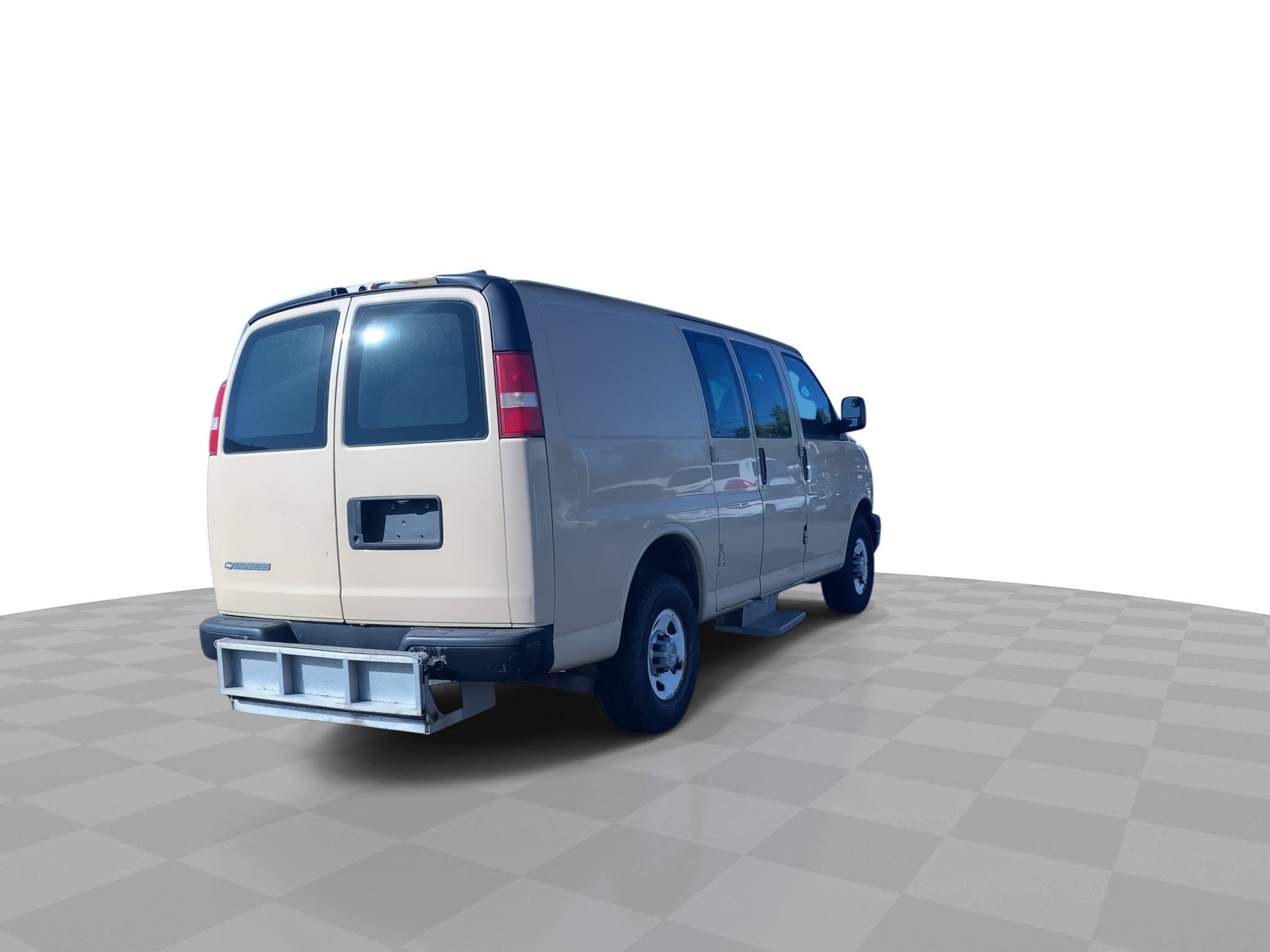

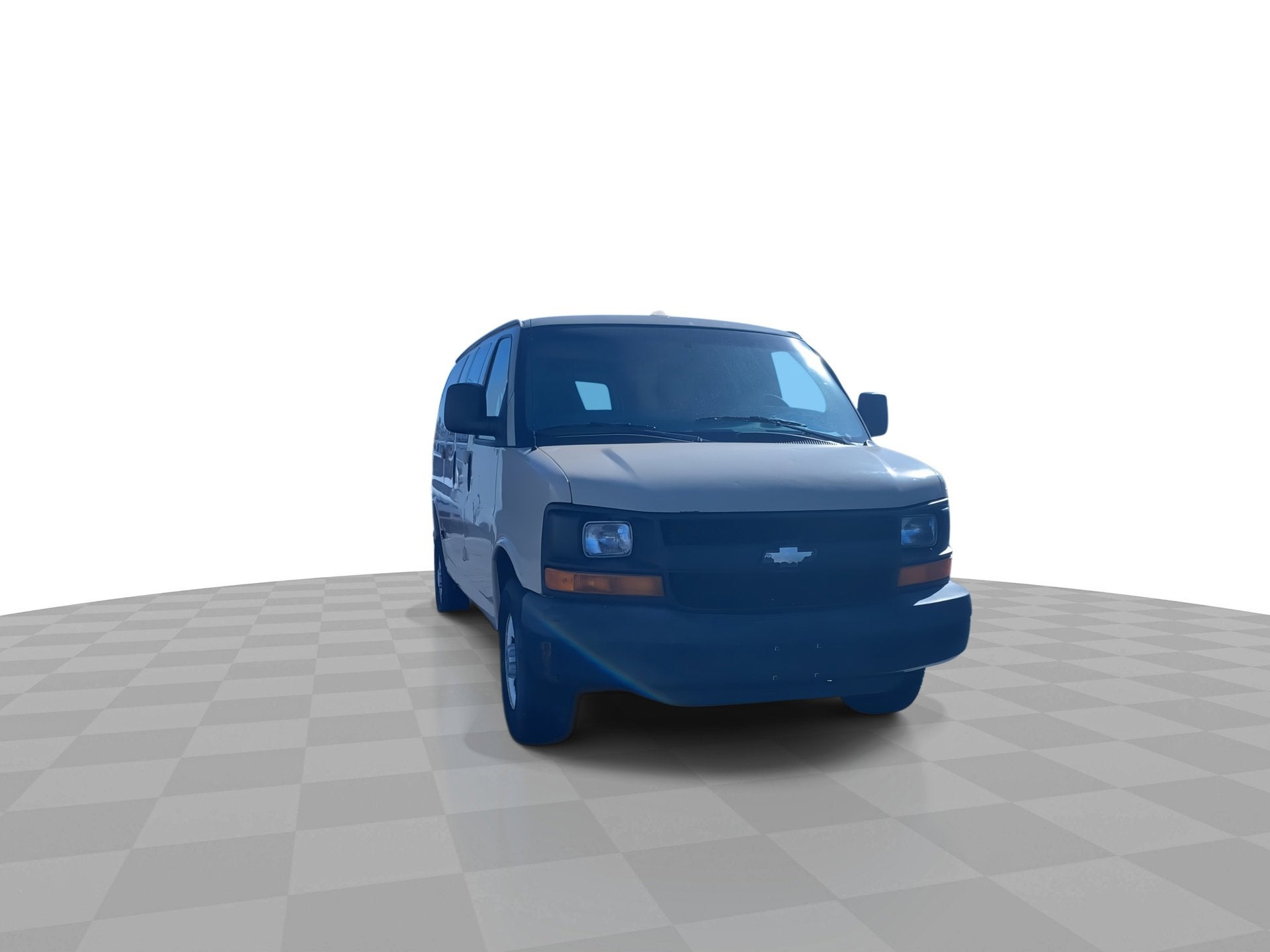

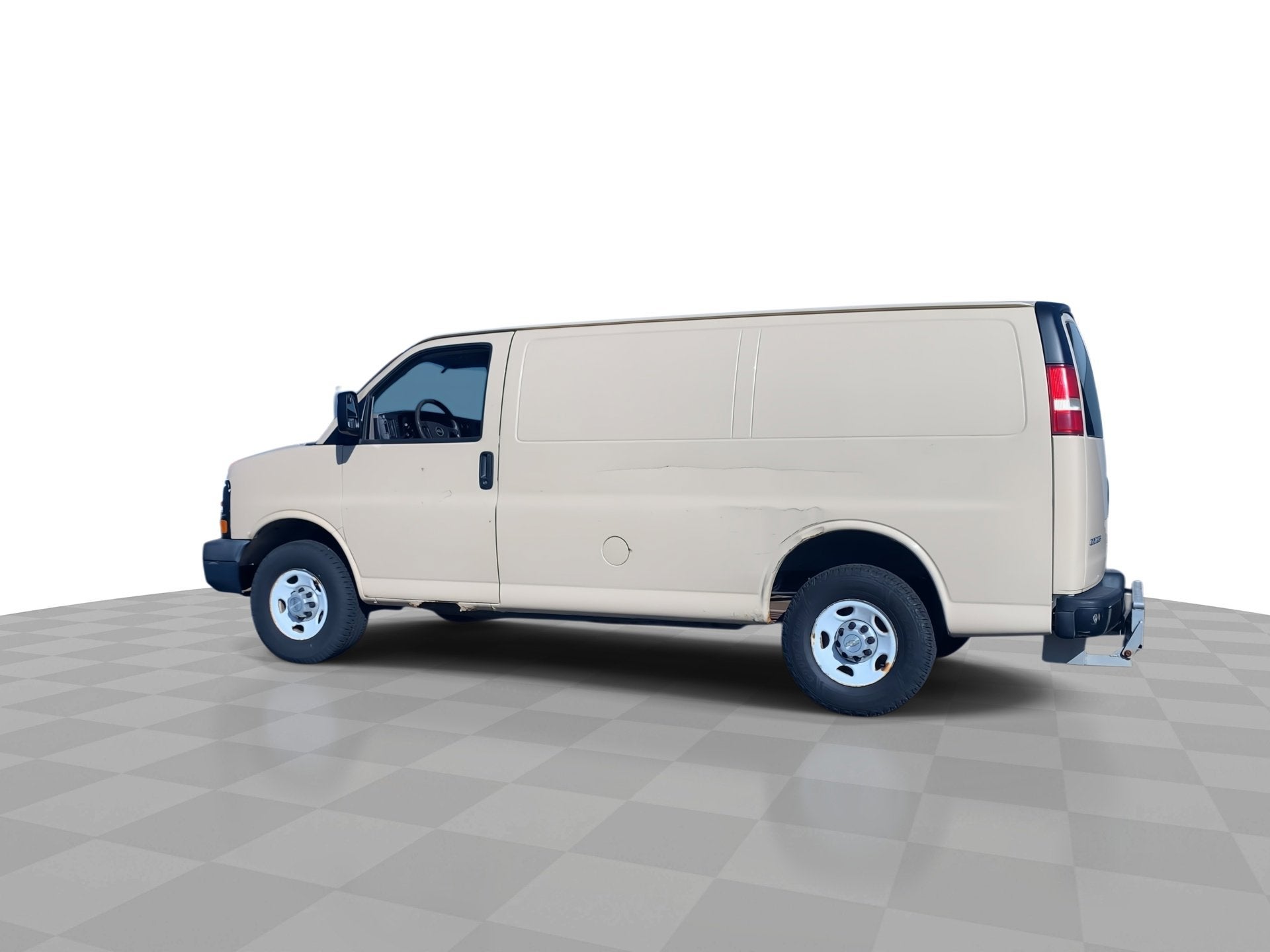

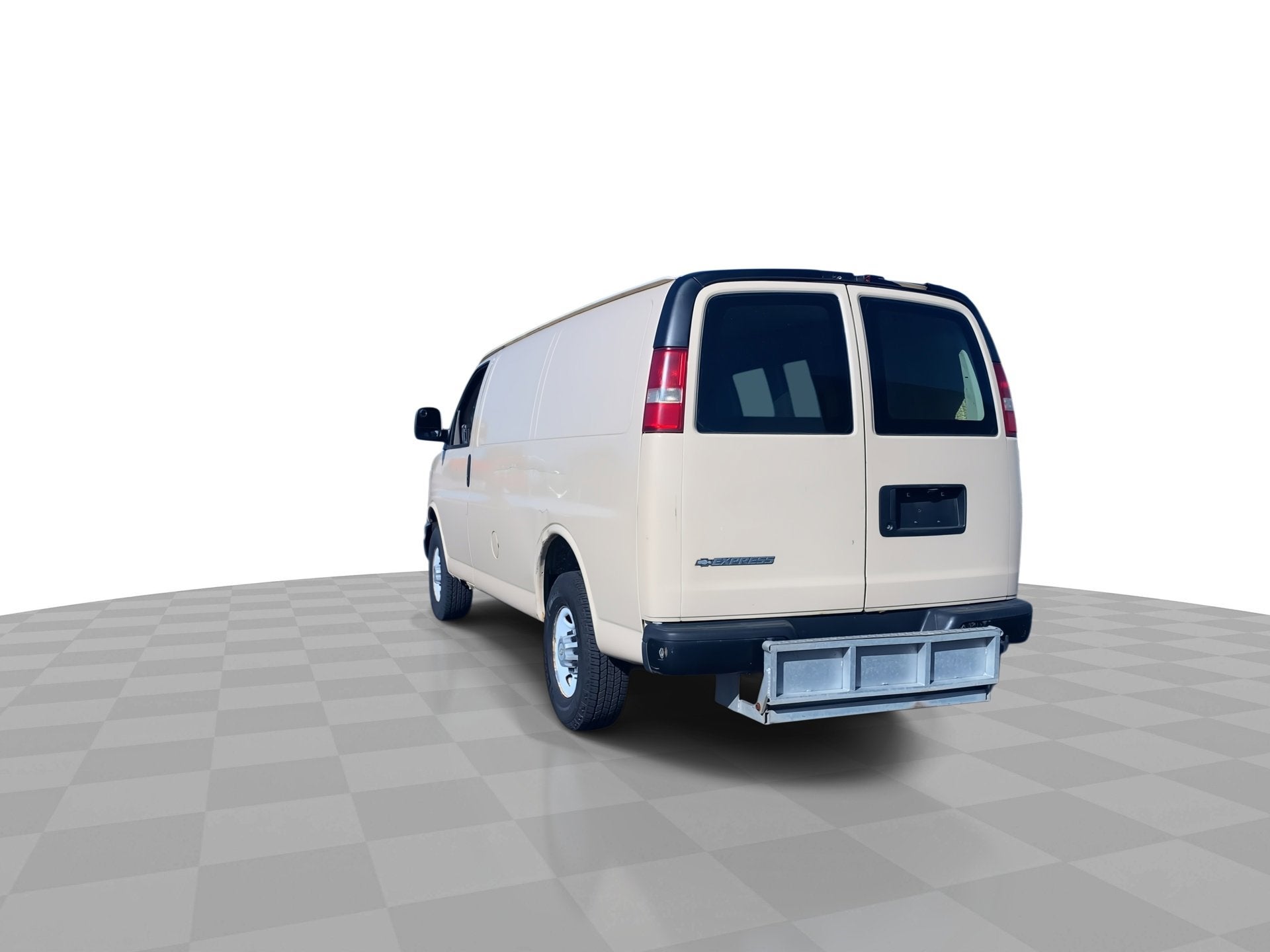

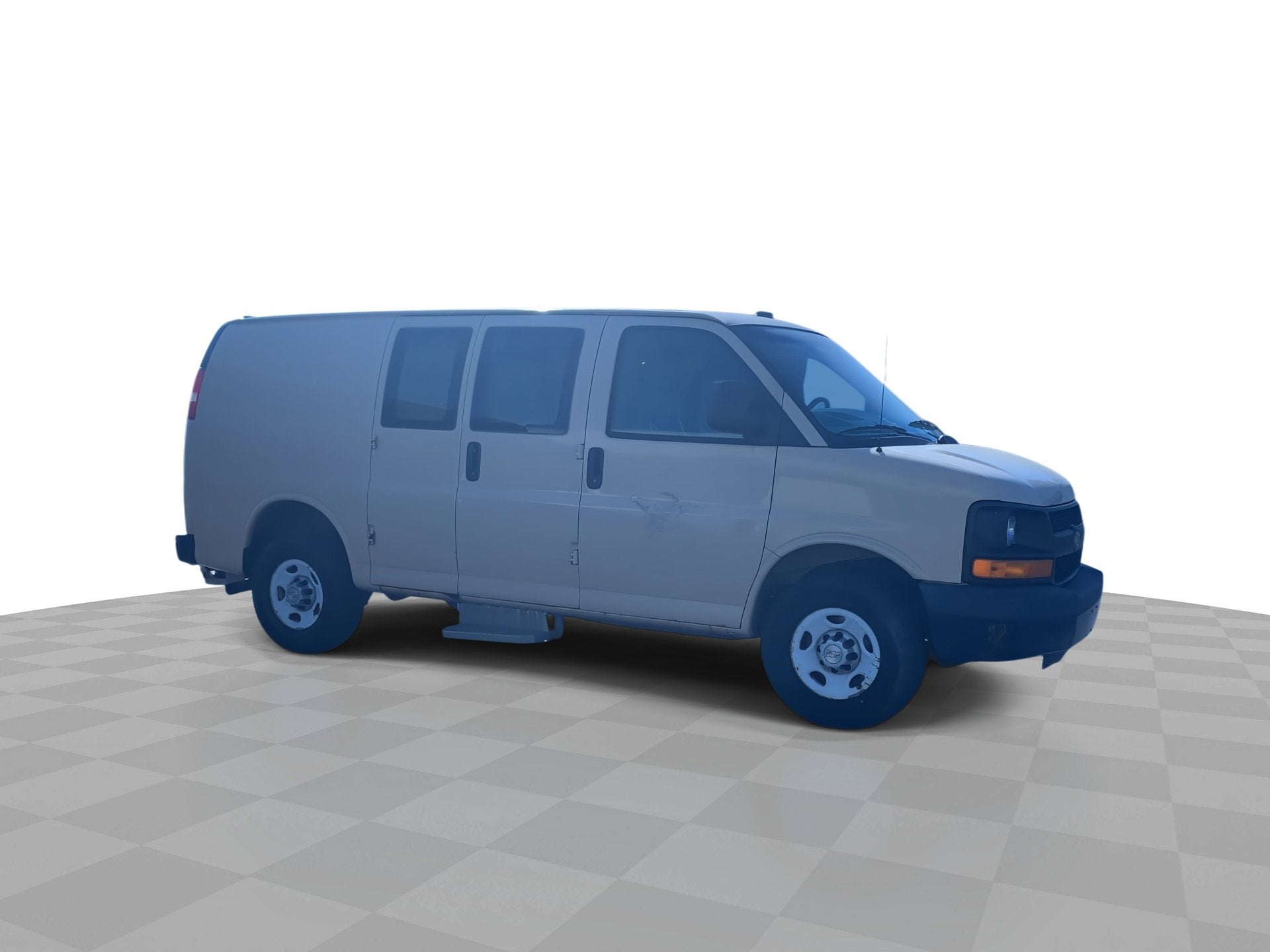

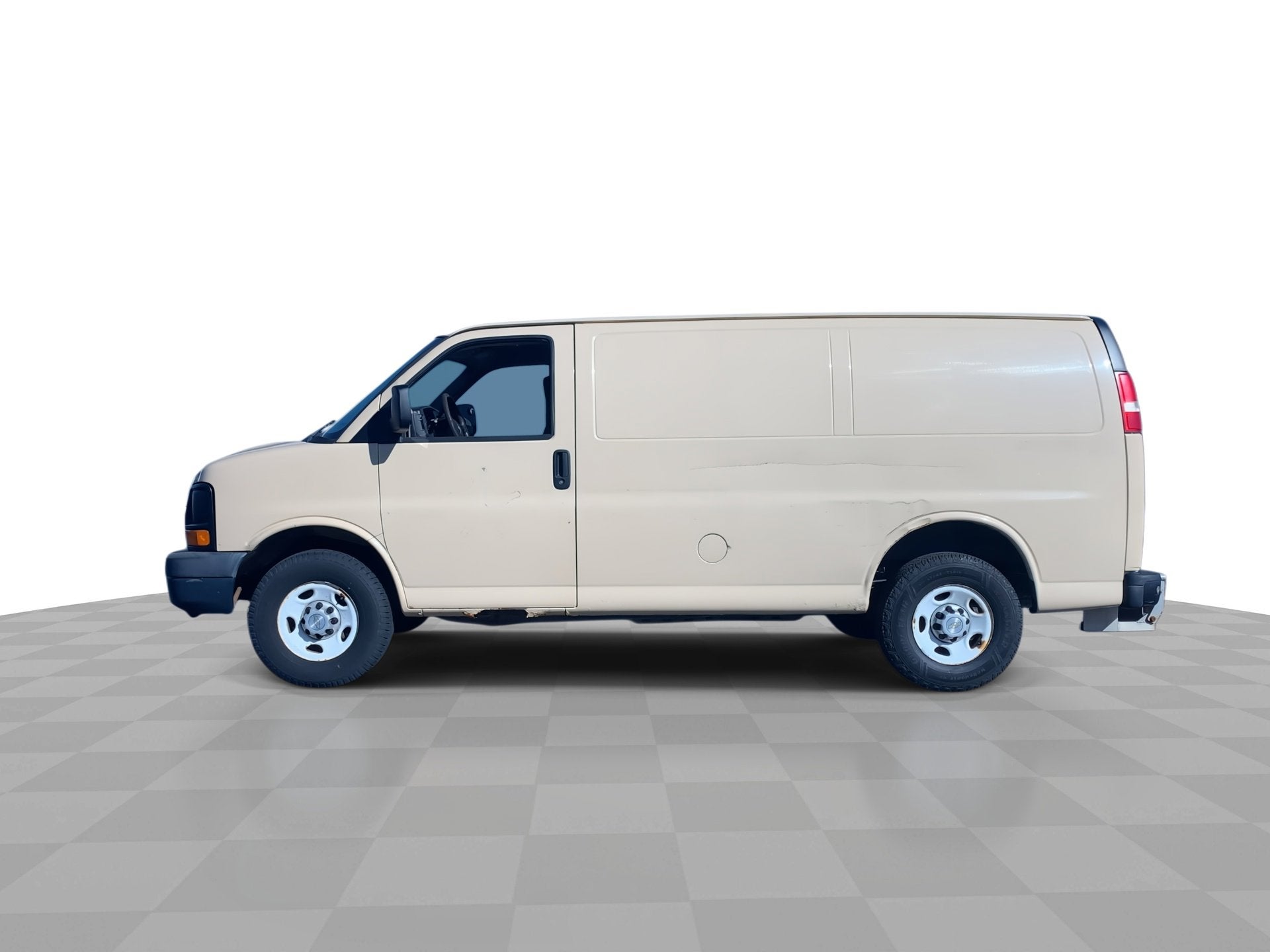

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 3500 Cargo Van 135" WB
• Body Code: ZW9
